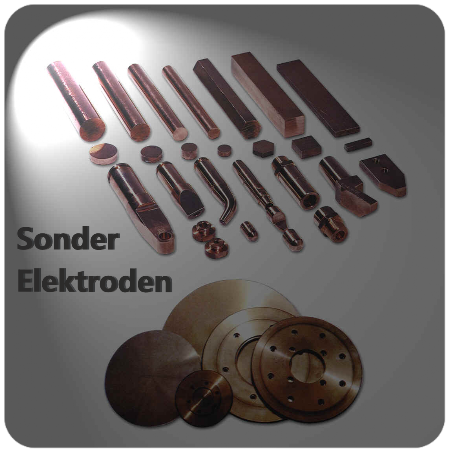

Special spot welding electrodes made of electrolytic copper. made of electrolytic copper (ECu) hard-drawn for welding aluminum for welding non-ferrous metals with a high copper content and welding non-ferrous metals with high light metal alloys. Special spot welding electrodes made of copper-chrome material.

Manufactured from a copper chromium, copper chromium zirconium alloy (CuCr, CuCrZr; CuCr1Zr ) for welding steel, stainless steel, nickel alloys, brass, bronze.

Special spot welding electrodes made of the material copper-cobalt-berilium.

Made of copper-cobalt beryllium (CuCoBe,CuCo2Be), for welding high-alloy steel, NiCr alloys, Monel.

Special spot welding electrodes made of tungsten copper. Insert-electrode made of Copper-tungsten (CuW. CuWAg)

Special spot welding electrodes made of pure Tungsten.

Insert-electrode made of tungsten (W) soldered into a copper carrier, for welding application copper, silver, for resistance brazing and hot riveting.

Special spot welding electrodes made of the material tungsten lanthanum 1%. Insertion electrode made of tungsten lanthanum with 1% lanthanum (WL1) soldered into a copper carrier, for welding copper, silver, for resistance brazing and hot riveting. Special spot welding electrodes made of the material tungsten lanthanum 2% Insertion electrode made of tungsten lanthanum with 2% lanthanum (WL2) soldered into a copper carrier, for welding copper, silver, for resistance brazing and hot riveting.

Special spot welding electrodes made of molybdenum. Manufactured from molybdenum (Mo) soldered into a copper carrier for welding copper, copper strands, silver and non-ferrous metals Special spot welding electrodes made of titanium zirconium molybdenum.

Made of molybdenum titanium zirconia (TZM) soldered into a copper carrier for welding copper, copper strands, silver and non-ferrous metals Spot welding special electrodes manufactured according to customer specifications and our experience.

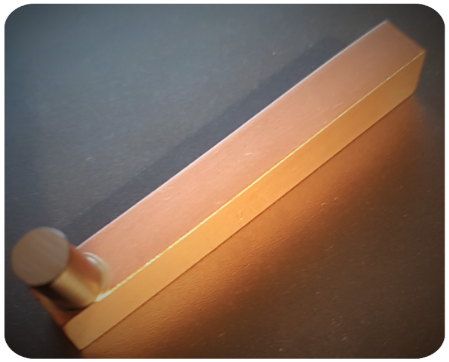

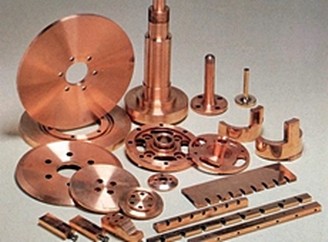

Special electrodes tungsten insert Special roll electrodes made of CuCo2Be Special roll electrodes made of CuCo2Be

     Special electrodes tungsten insert                    Special roll electrodes made of CuCo2Be     Special roll electrodes made of CuCo2Be



                                                                               Spotweld caps

Shaft material and shaft diameter and insert diameter and insert material and the appropriate length can be selected for the special insert electrodes depending on the requirements.
