Standard spot welding electrodes
PRODUCT > RESISTANCE WELDING
We offer different materials and shapes for standard electrodes depending on the type of material to be welded.
Here you will find an overview of the materials and applications for standard electrodes for spot welding in micro-resistance welding technology, in the following text and in the following tables you can select the standard electrode that suits you.
Choosing the right spot welding electrode has a major impact on your cost factor and the quality of a welded joint. Both their uniformity in series production, whereby the service life (service life) of the spot welding electrode, i. H. whose deformation and wear under the influence of heat is decisive. For this reason, we offer different electrode materials for resistance welding technology depending on the type of material to be welded.
Spot welding electrodes made of electrolytic copper.
Very soft spot welding electrodes made of hard-drawn electrolytic copper (ECu) suitable for welding aluminum and for welding non-ferrous metals with a high copper content and welding non-ferrous metals with high light metal alloys.
Copper-Chrome-Zircon.
Spot welding electrodes made of copper-chrome material.Manufactured from a copper-chromium, copper-chromium-zirconium alloy (CuCr, CuCrZr; CuCr1Zr) suitable for spot welding steel, stainless steel, nickel alloys, brass, bronze.High-strength.
Copper-Cobald-Berrylium.
Spot welding electrodes made of copper-cobalt-beryllium. made of copper-cobalt beryllium (CuCoBe, CuCo2Be), for welding high-alloy steel, NiCr alloys, Monel. High-strength and heat-resistant.
Tungsten/Copper.
Spot welding electrodes made of the material tungsten-copper and tungsten-copper-silver. Insertion electrode made of tungsten-copper or tungsten-copper-silver (WCu, WCuAg).
Tungsten.
Spot welding electrodes made of tungsten. Insertion electrode made of tungsten (W), soldered into copper carrier, for welding copper, silver, for resistance brazing and hot riveting, etc.
Tungstenlanthanium1%.
Spot welding electrodes made of the material tungsten lanthanum 1%. Insertion electrode made of tungsten with 1% lanthanum (WL1) soldered into copper carrier, for welding copper, silver, for resistance brazing and hot riveting, etc.
Tungstenlantanium2%.
Tungstenlanthanium 2%.
Spot welding electrodes made of the material tungsten lanthanum 2%. Insertion electrode made of tungsten with 2% lanthanum (WL2) soldered into copper carrier, for welding copper, silver, for resistance brazing and hot riveting, etc. Spot welding electrodes made of
Molybdenum.
Spot welding electrodes made of molybdenum (Mo) soldered into copper carrier for welding of copper stranded copper, silver and non-ferrous metals etc.
Titan-Zirkon-Molybden.
Spot welding electrodes made of titanium zirconium molybdenum. made of molybdenum (TZM) soldered into copper carriers for welding copper, copper strands, silver and non-ferrous metals, etc.
In the tables below you will find an overview of our standard electrodes with details of the dimensions and materials.
Standard spot welding electrodes with a diameter of 3 -10 mm (solid material).
Total length 50 mm, shank diameter Ø can be selected variably (dimensions in mm)

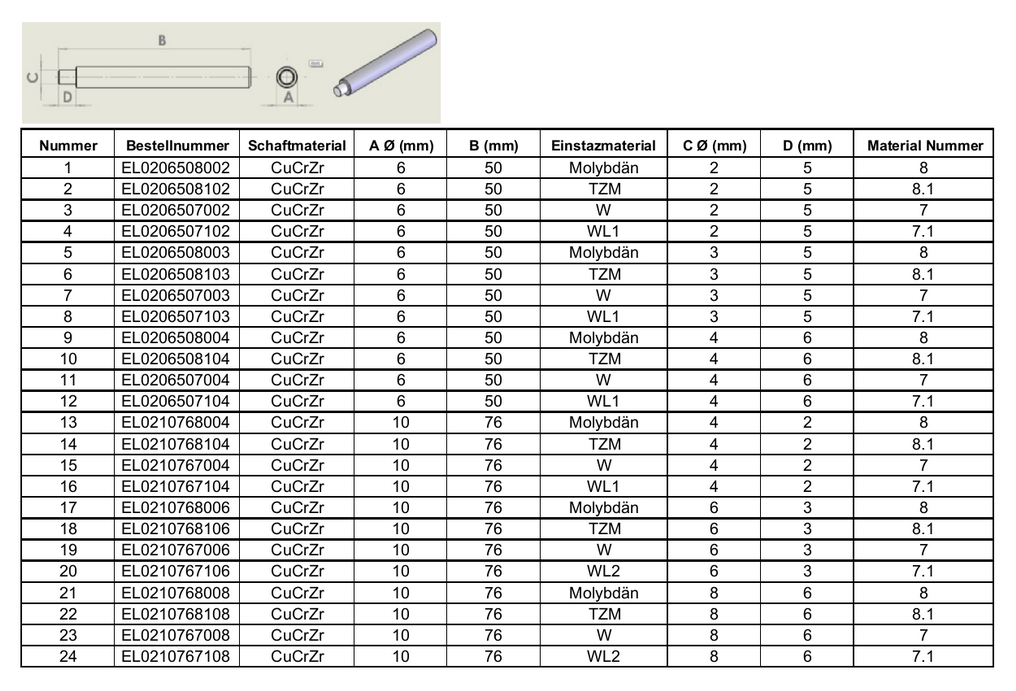

Standard spot welding electrodes with an insert and a shank diameter of 6 mm or 10 mm. Available with different insert materials.
Total length 50/76 mm, shank Ø 10 mm, insert Ø 3 -6 mm, insert material selectable according to application molybdenum, titanium zirconium molybdenum, tungsten copper/tungsten silver, tungsten and tungsten lanthanum 1%, 1.5% and 2%. Standard spot welding electrodes with an insert and a shank diameter of 6 mm or 10 mm. Available with different insert materials.
Our double electrodes are the inexpensive option for spot welding.
Also default:
Double spot welding electrodes with insert and shank diameter 10 mm. Available with different inserts.
Total length 82 mm, shank Ø 10 mm, insert Ø 4 or 6 mm, insert material selectable according to application molybdenum, titanium zirconium molybdenum, tungsten copper/tungsten silver, tungsten and tungsten lanthanum 1%, 1.5% and 2%.
You can request or download the prices and the exact dimensions, tolerances and material information from us at any time
Spot welding electrodes with double Insert Spot welding electrodes with single Insert
Extra for you, request a quote email. info@weld-tech.de or order in the shop.
Spot welding electrodes with different insert forms and insert material depending on the application. e.g. Molybdenum, TZM, tungsten copper, tungsten pure, tungsten lanthanum 1%, 1.5% and 2%.
More insert electrodes with different insert materials such as tungsten pure, tungsten lanthanum 1% / 2% or other insert metals can be manufactured according to customer requirements
